fresh

The Reset button lock
In The Master Sky, you can buy the Reset button lock unsoldered with the connector.
The Reset button lock unsoldered with the connector.
  • 7-pin toggle switch lock
  • Cast body with chrome-plated finishing
  • Round chrome-plated key
Included in the package:
  • Lock
  • Unsoldered cord
  • 3 keys
Lock length: 36.5 mm
The BC2-10 lock
In The Master Sky, you can buy the BS2-10 hinged lock (Cheboksarskiy aggregatnyi zavod, CHAZ). The lock belongs to the group of locks with a high degree of protection.
The BS2-10 hinged lock (Cheboksarskiy aggregatnyi zavod, CHAZ). The lock belongs to the group of locks with a high degree of protection. Such locks completely exclude the access to the shackle and due to this water does not accumulate in the inner opening, which is especially important during the operation of the lock in winter.
The BS2-10 lock body is cast-iron, the shackle is made of steel. The mechanism of the secret - disk type, with 7000 possible combinations.
  • Material: Cast-iron
  • Secret mechanism: Disk type
  • Number of secrets: 7000
  • Shackle: Steel
  • Shackle diameter, mm: 14
  • Shackle length, mm: 24.5
  • Number of keys, pcs: 3.
  • Key type: Finnish
  • Dimensions (length*height*thickness), mm : 88*91*46
  • Weight, kg: 1.905
The SUZO STC Lock 5/8, rounded keys
In The Master Sky, you can buy the Suzo STC Lock 5/8 for kiosks, locking stackers and cassettes.
The Suzo STC Lock 5/8 is used for locking stackers and cassettes.
  • 7-pin toggle switch lock
  • Cast body with chrome-plated finishing
  • Round chrome-plated key
Included in the package:
  • Lock
  • 3 keys
Lock dimensions: 16 mm (5/8 ") / 22.3 mm (7/8 ") / 28.6 mm (1-1/8 ")
The Citizen PPU-700 power supply unit
In The Master Sky, you can buy the Citizen PPU-700 thermal printer power supply unit with a cable to power the thermal printer.
The Citizen PPU-700 thermal printer is used for printing the receipts, it receives the electricity through an external power supply unit. Built-in  device with 60W voltage has one output channel (first line voltage is 24V, amperageis 2.5A). The network parameters at the input are 100-250 V, 47-63 Hz at 1.5 A amperage.
  • Voltage: DC 24V
  • Manufacturer: Citizen
  • Type: Built-in power supply unit
  • Input voltage: AC220V
  • Power, W: 60
  • Output maximum amperage, A: 2.5
  • Fan: no
  • Power coefficient corrector: no
  • Humidity protection: no
  • Narrow: no.
  • Number of output channels: 1 pc.
    • Output 2: 2.5A amperage
    • Output 1: 24V voltage
The LRS-100-24 power supply unit
In The Master Sky, you can buy the LRS-100-24 universal power supply for thermal printers and bill acceptors.
The LRS is a series of power supply units in a low-profile case for budget applications.
Converters can be used in the Industrial automation and control devices, household devices, in various electromechanical devices and units.
Features: resistance to high input voltage up to 300 V (up to 5 seconds) and vibration up to 5G.
  • Input voltage range: 85...264 V;
  • Working temperature range: -30...+70ºC (-25...+70ºC for the LRS-200/350);
  • Case height: 30 mm;
  • Protection against short-circuit, overload, overvoltage (for all models), overheating (for the LRS-150/200/350);
  • Efficiency factor: 87.5-91.5%.
  • Output voltage, V: 24
  • Output amperage, A: 4.5
  • Power, W: 108
  • Number of outputs, pcs: 1.
  • Power coefficient correction: no
  • Dimensions, mm: 129x97x30
  • Weight, g: 340

The LRS-100-24 (duplicate) power supply unit

In The Master Sky, you can buy the LRS -100-24 universal power supply unit for thermal printers and bill acceptors.

The LRS is a series of power supply units in a low-profile case for budget applications.
Converters can be used in the Industrial automation and control devices, household devices, in various electromechanical devices and units.
Features: resistance to high input voltage up to 300 V (up to 5 seconds) and vibration up to 5G.
  • Input voltage range: 85...264 V;
  • Working temperature range: -30...+70ºC (-25...+70ºC for the LRS-200/350);
  • Case height: 30 mm;
  • Protection against short-circuit, overload, overvoltage (for all models), overheating (for the LRS-150/200/350);
  • Efficiency factor: 87.5-91.5%.
  • Output voltage, V: 24
  • Output amperage, A: 4.5
  • Power, W: 108
  • Number of outputs, pcs: 1.
  • Power coefficient correction: no
  • Dimensions, mm: 129x97x30
  • Weight, g: 340

The CR2032 battery
В Master Sky вы можете купить литиевую батарею CR2032 - батарею, которая обеспечивает стабильное питание для небольших электронных устройств.
Аккумулятор CR2032 отличается низким уровнем саморазряда и применяется в компьютерной технике.
  • Модель: CR2032-BP5
  • Номинальное напряжение: 3 В
  • Номинальная емкость: 220 мАч
  • Рабочая температура: от -30 до +65
  • Номинальный ток заряда: 0,2 мА
  • Тип размера: CR2032
  • Вес: 0,03 кг
  • Цвет: серебристый

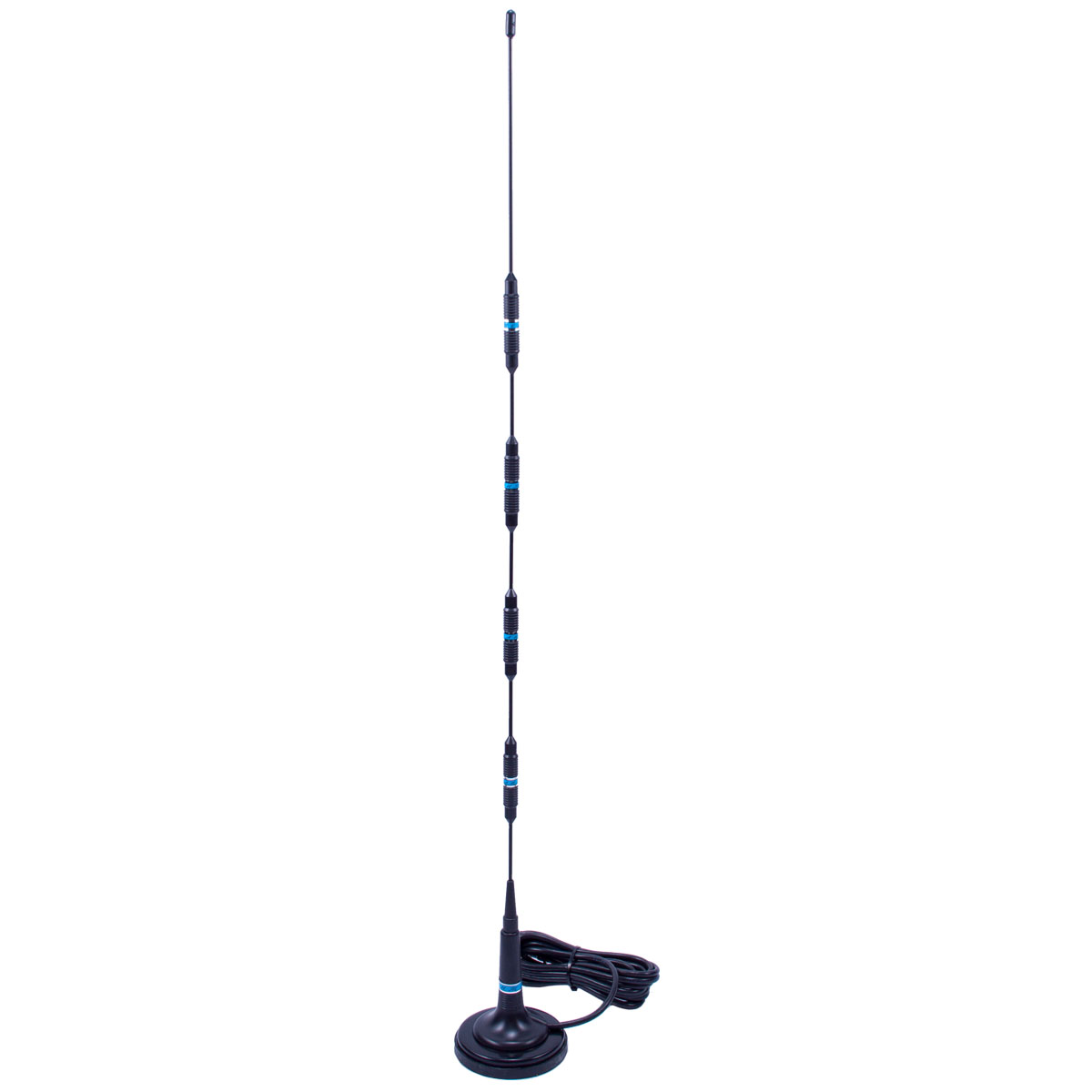

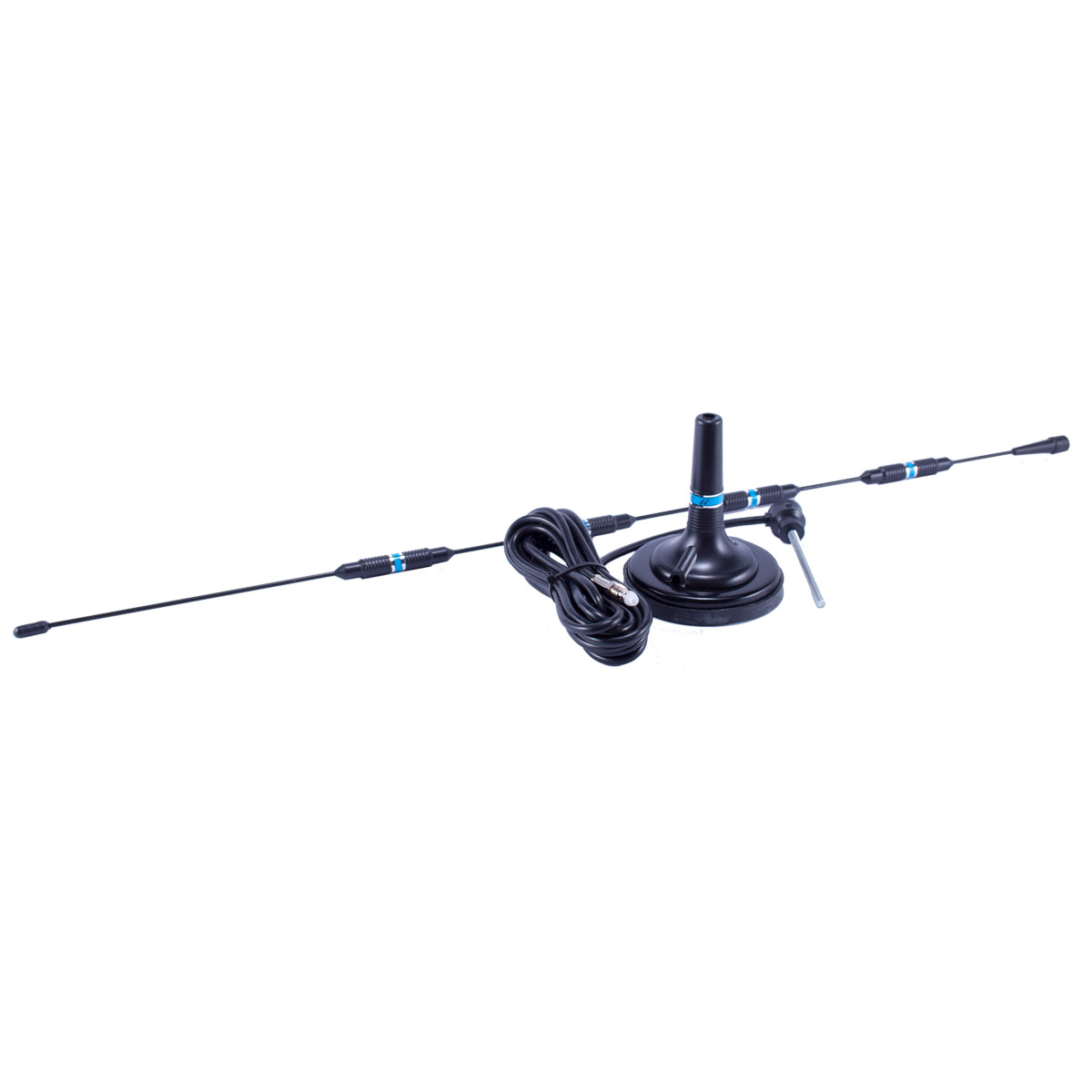

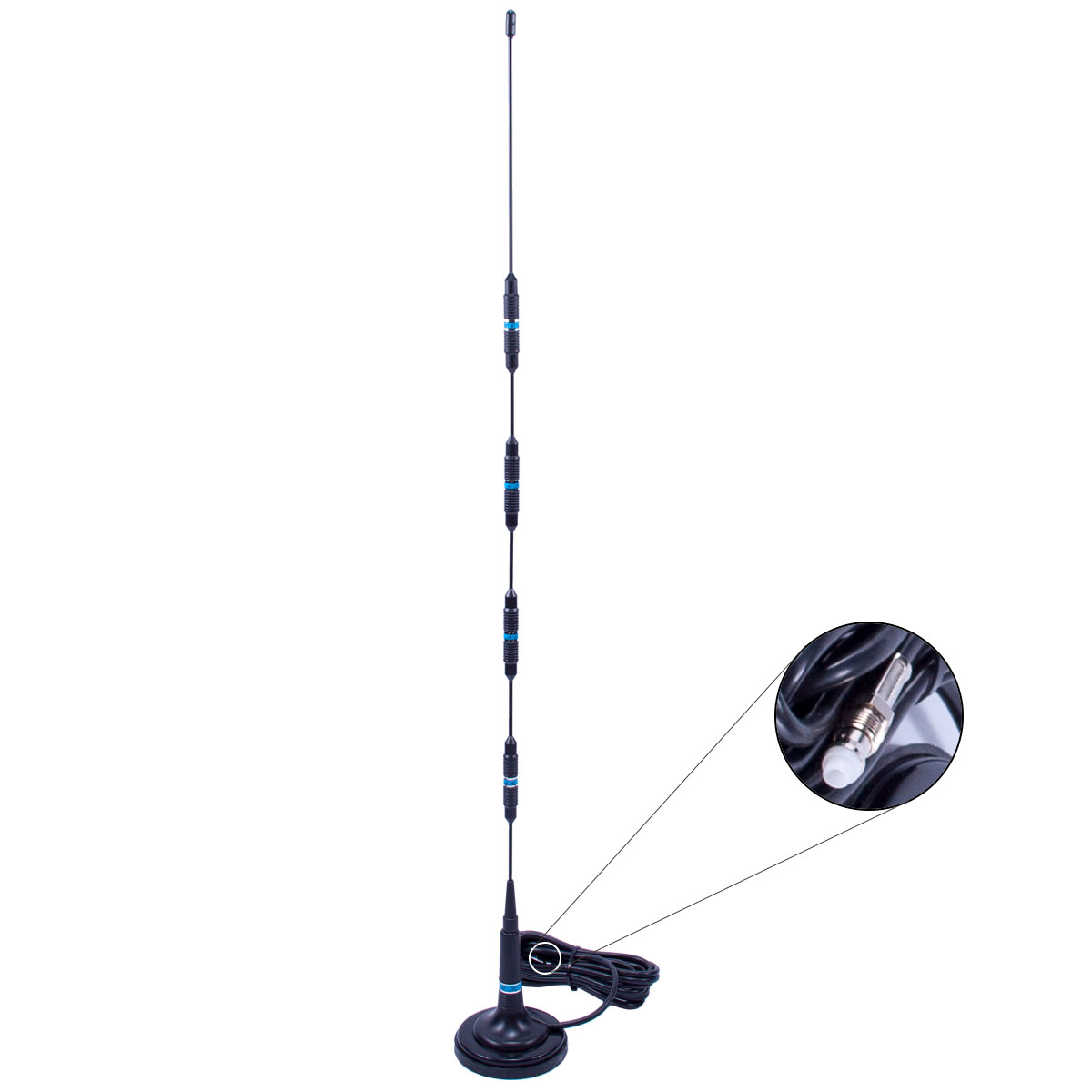

The ANTEY-902 9DB GSM and GPRS antenna for signal amplification
In The Master Sky, you can buy the Antey-902 9dB GSM antenna on a magnetic base. The antenna has an increased coefficient of amplification. It is made on a magnetic base with the FME/SMA connector.
The Antey-902 9dB GSM antenna on a magnetic base has an increased coefficient of amplification. It is made on a magnetic base with the FME/SMA connector.
Antenna’s height is 61.5 cm.
  • Range: 900/1800 MHz
  • Resistance: 50 Ohm
  • Amplification: 9 dB
  • Magnetic base: 75 mm
  • Connector: SMA

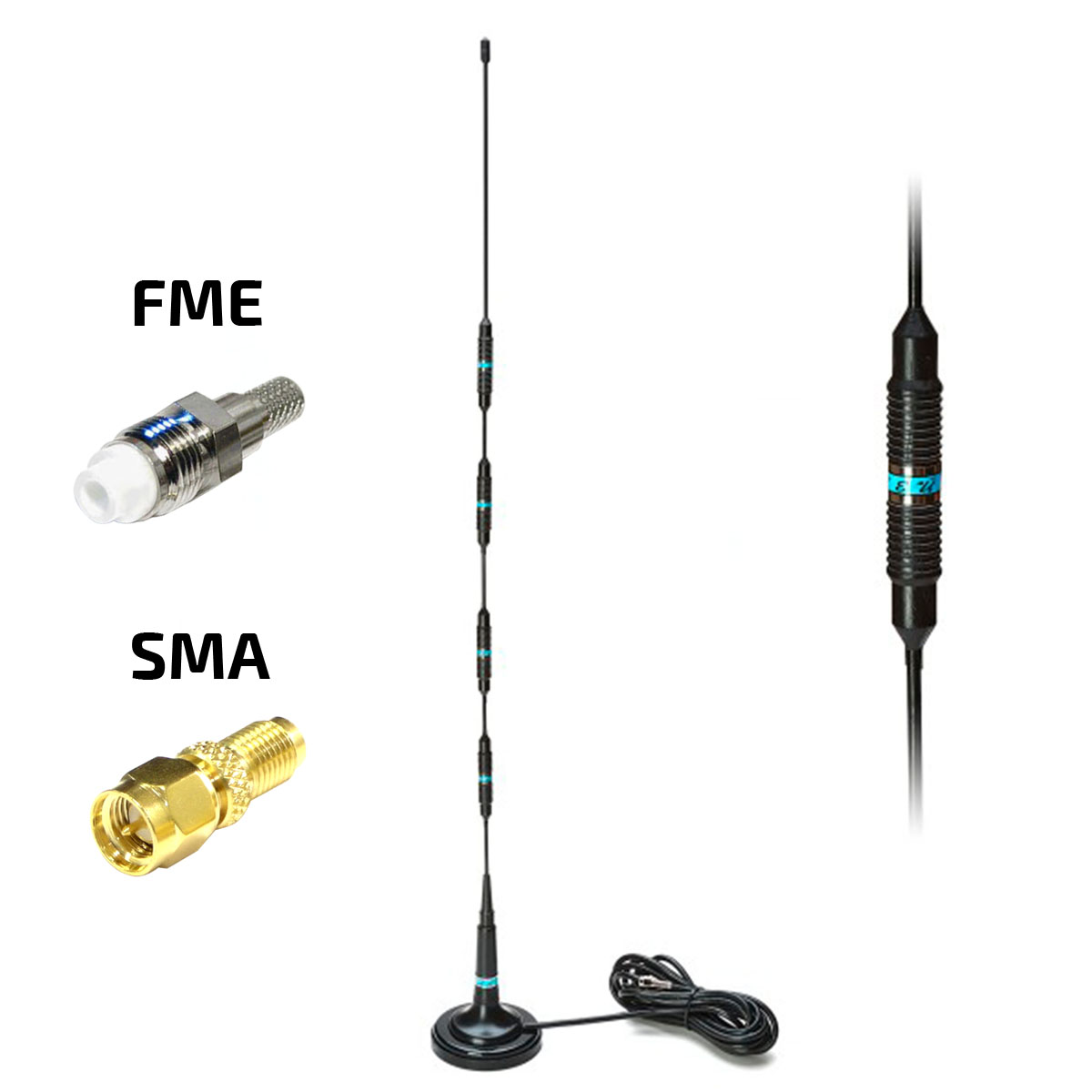

The Antey 906 13.5dB FME/SMA GSM antenna
In Master Sky, you can buy the Antey 906 13dB GSM antenna on a magnetic base. The antenna has an increased amplification coefficient. It is made on a magnetic base with the FME/SMA connector.
The Antey 906 13.5dB GSM antenna on a magnetic base with an increased power is typically used in places with a weak GSM network signal, it helps to strengthen the GSM signal for kiosks. It is made on a magnetic base with a 3 meter cable and the FME/SMA connector.
Antenna’s height is 67 cm.
  • Range: 900/1800 MHz
  • Resistance: 50 Ohm
  • Amplification: 13.5dB
  • Magnetic Base: 75mm
  • Connector: FME/SMA

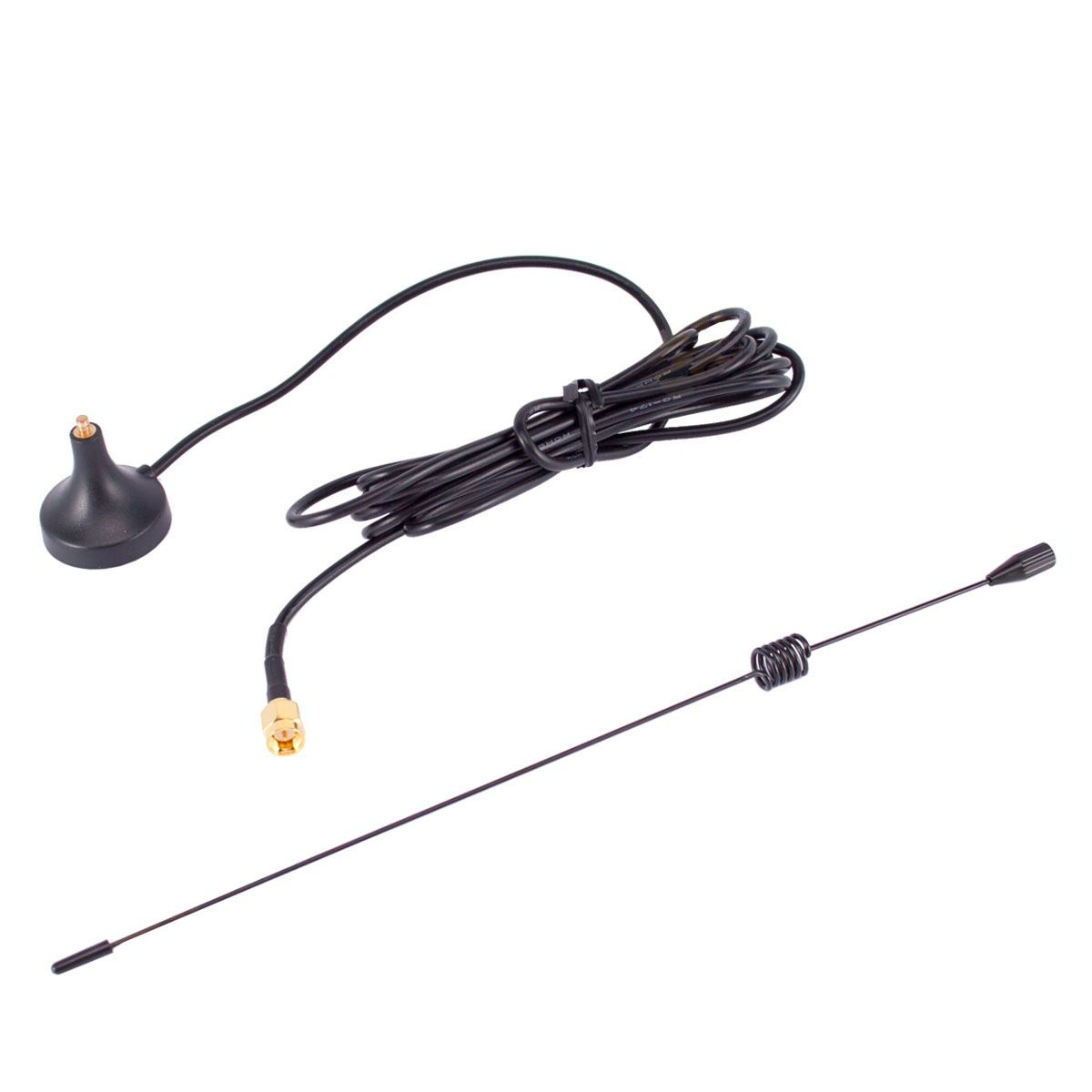

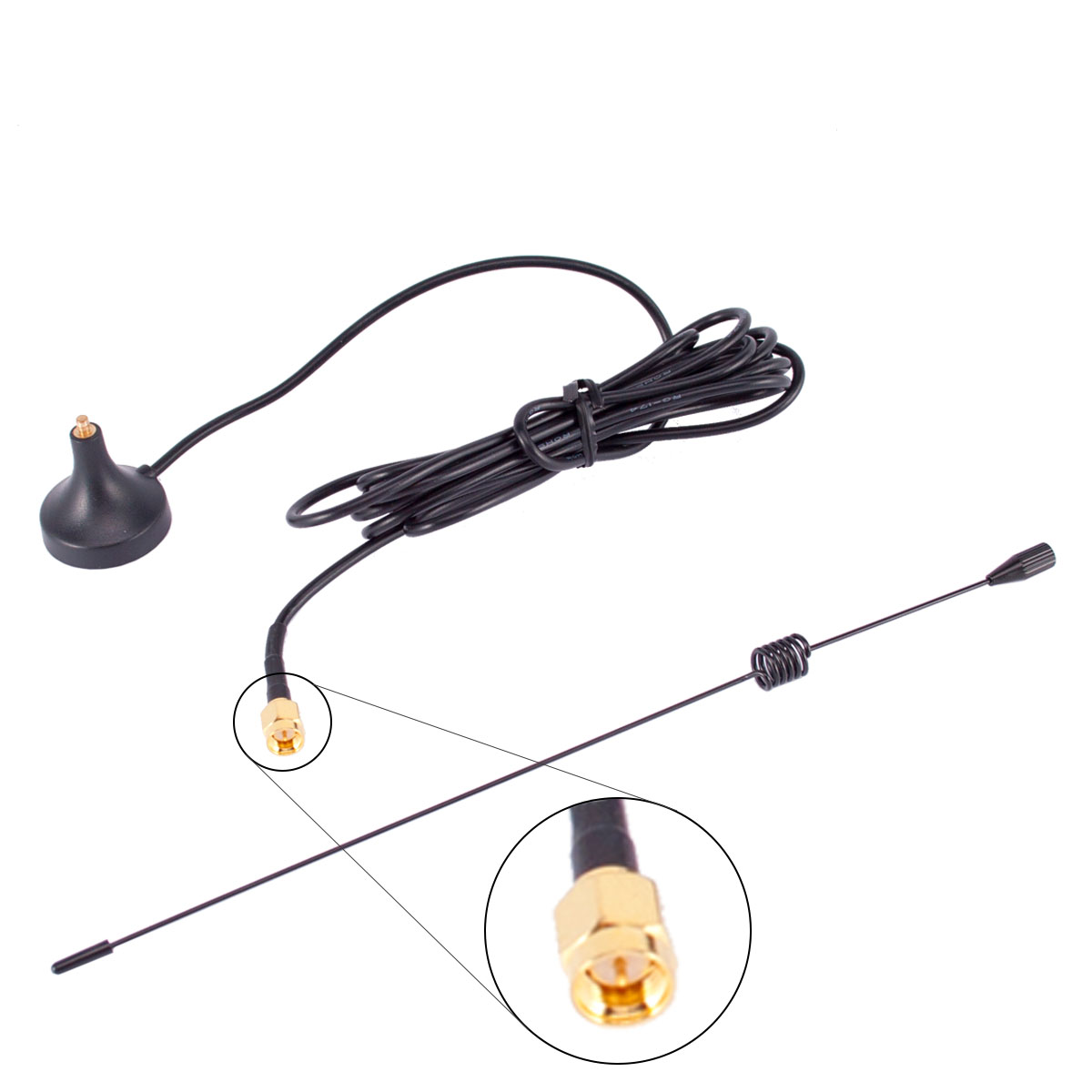

The GSM, SMA antenna
In The Master Sky, you can buy the dual-range GSM antenna on a magnetic base with the SMA-connector.
The dual-range GSM antenna on a magnetic base with the SMA-connector. It is designed to be used with the GSM devices that have the appropriate antenna connector.
  • Frequency range, MHz: 890-960/1710-1890
  • SWR (on the center frequency): ≤1.5
  • Amplification, dBi: 3.5
  • Polarization: linear
  • Resistance, Ω: 50
  • Connector: SMA

  • Working temperature, ℃: -40 ... +85
  • Humidity, %: 0 … 95
  • Overall dimensions, mm: 28x110
  • Weight, g: 50
