The rack for one vending machine
In The Master Sky, you can buy the rack for one vending machine.
The rack is designed for an installation of one vending machine.
  • Rack height of 70 cm.
  • Color: Ral 3001 gloss.

  • Weight, kg: 6.55
  • Volume, m3: 0.08
SB series channel for three machines
In The Master Sky, you can buy a channel for installing mechanical vending machines.
With this channel you can install three SB series vending machines.
  • Quantity, pc: 1
  • Weight, kg: 1.3
  • Volume, m3: 0.001
  • Dimensions - 59cm x 11.5cm
The ROSSO TOUCH coffee machine
In The Master Sky, you can buy the ROSSO TOUCH Coffee machine. This is a complete tool that allows you to significantly increase the functionality of the machine. With the touchscreen monitor installed in the coffee machine, we have added the functionality of the kiosk to accept payments for mobile communication, internet and hundreds of other services.
The large 22-inch touch screen of the ROSSO TOUCH is a complete tool that allows you to significantly increase the functionality of the machine. With the touchscreen monitor installed in the coffee machine, we have added the functionality of the kiosk to accept payments for mobile communication, internet and hundreds of other services.

Touchscreen monitor in the vending machine greatly enhances its capabilities, making the purchase easier and more accessible. Prior to purchase, touchscreen will help the customer to select the product that is perfect for him. This can be particularly useful when selling new products or complex technical devices that need a detailed and accurate description. The information capabilities of the touchscreen monitor and its entertainment-multimedia functionality will help to significantly increase sales in your vending machine, making it more attractive and popular.
  • Large 22'' touch screen monitor
  • An efficient set of software tools for analytics and control of the machine operation through the online monitoring system.
  • Professional grinder with a fine adjustment of the grinding.
  • Large boiler for stable drinks temperature.
  • The unique dispensing mechanism, allowing the customer to pick up the drink only after it has been fully prepared.
  • Comfortable maintenance due to the ergonomic arrangement of the components inside of the machine.
  • LED lightning of the top, middle, and bottom boxes.
  • The control panel and payment systems are separated from the main block by a metal curtain.
  • The FoodBox Slave can be connected to the module.
  • Standard coating - special anti-vandalous paint for maintaining an excellent appearance of the machine
  • If you want to brand the machine on your own, you should talk to your manager in advance about applying the appropriate coating.
  • ITL BV100 bill acceptor
  • NRI Currenza C2 coin hopper
  • Net dimensions (h x w x d): 1830 x 600 x 660 mm
  • Gross weight: 165 kg
  • Power supply: 220-230 V / 50 Hz
  • Power consumption (maximum): 1800 W
  • Espresso boiler capacity: 0.6 l
  • Connection to water: 3/4'' 0.5 - 8.5 bar
  • Water supply: autonomous / central
  • Capacity of canisters: 2 by 20 l
  • Cups: 600
  • Diameter of cups: 70 mm
  • Mixers: 500
  • Size of mixers: 95 / 105 / 115 mm
  • Containers for grain coffee: 1
  • Containers for soluble ingredients: 4
  • Container for sugar: 1
  • Number of drinks: 16
  • Mixers: 4
  • Dosage of coffee grains: 6 - 9,5 g
Canister capacity
  • Grain coffee: no
  • Milk: 2.2 kg
  • Chocolate: 4.8 kg
  • Tea: 5.2 kg
  • Vanilla cappuccino: 4.8 kg
  • Sugar: 4 kg
Self-service coffee mashine MSG Coffee PRO
In "Master Sky", you can buy Self-service coffee mashine MSG Coffee PRO.

MSG Coffee PRO is a self-service coffee mashine that offers its customers a wide range of drinks based on freshly roasted coffee. In the menu, you will find not only classic drinks such as espresso and latte but also more exotic options.

All drinks at MSG Coffee PRO are made from fresh and high-quality ingredients, and the prices remain affordable for a wide audience.

  • Device size: 420x800x660 mm
  • Cup capacity: 50 pcs
  • Cup volume: 350 ml
  • Cup and lid diameter: 90 mm
  • Number of compartments: 4 pcs.
  • Swiss coffee grinder and Dutch brewing block Bean hopper (1.5 kg)
  • Automatic cup dispensing Automatic rinsing and cleaning function
  • Compatibility with MDB payment devices Wi-fi connection
  • Customizable menu with 20+ drink options
  • Drink recipes and assortment can be adjusted/changed
Vending machine "Kids"
In "Master Sky", you can buy the Vending machine "Kids". Vending machine selling gum, toys and candy. Automatic dispensing of goods, provides quick and convenient shopping.

Vending machine "Kids" for gum, toys and candy is equipped with automatic dispensing of goods and payment via coin-operated or QR code, which ensures convenient shopping. An innovative monitoring system gives full control over products and finances, making commerce easier and smarter.

  • Payment hardware
  • SaaS monitoring
  • RGB backlighting
  • Vandal resistant housing
  • Possibility of individual set of options and accessories

Payment equipment
With a coin acceptor - can accept and process cash payments.

SaaS monitoring
For remote management: updating recipes, interface, advertising, discounts and system.

RGB backlighting
Bright LED backlighting is an additional component of your corporate identity, drawing attention away from your competitors.

Vandal resistant housing
The burglary resistance class is ensured by an additionally reinforced housing, no gaps and a special door opening mechanism.

Possibility of individual set of options and accessories
On your request we will install the necessary equipment to solve your business tasks.

Coffee corner "Slim"
In "Master Sky", you can buy the Self-service Coffee corner "Slim".

Coffee corner "Slim" is a self-service coffee mashine that offers its customers a wide range of drinks based on freshly roasted coffee. In the menu, you will find not only classic drinks such as espresso and latte but also more exotic options.

All drinks at Coffee corner "Slim" are made from fresh and high-quality ingredients, and the prices remain affordable for a wide audience.



  • Device size: 420x800x660 mm
  • Cup capacity: 50 pcs
  • Cup volume: 350 ml
  • Cup and lid diameter: 90 mm
  • Number of compartments: 4 pcs.
  • Swiss coffee grinder and Dutch brewing block Bean hopper (1.5 kg)
  • Automatic cup dispensing Automatic rinsing and cleaning function
  • Compatibility with MDB payment devices Wi-fi connection
  • Customizable menu with 20+ drink options
  • Drink recipes and assortment can be adjusted/changed

Dimensions:

  • Width - 490 mm;
  • Depth - 760 mm;
  • Height - 1550 mm.
Dispenser for household chemicals
At "Master Sky", you can buy a household chemical dispenser, an eco-friendly self-service solution that dispenses cleaning products at the customer's request into reusable containers.

The innovative Household Chemical Dispenser is an automated device designed to reduce the use of disposable packaging and increase environmental responsibility.

Customers can select the right product, measure the required volume and fill their reusable containers. The device is equipped with a touch screen, light indication, and a conveniently designed filling compartment.

Advantages:

LTE data channel - the kiosk can be located in the most remote corners and does not require a Wi-Fi connection: LTE transmission standards guarantee stable operation of the device;


Kiosk design - the eye-catching form-factor of the device ensures usability for different categories of users by following ergonomic design principles in the development of the device.



RGB backlighting

Bright LED backlighting is an additional component of your corporate identity, drawing attention away from your competitors.

Touchscreen

With multi-language and a well thought out UX - the customer will easily find the right buttons and understand what to do next.

Automated trading 24/7

Access products at any convenient time, not limited by store hours. This increases the number of customers served and sales, especially during evening and weekend hours.

Ability to pour4 types of liquids

This allows customers to quickly select the right product without having to use different machines, and allows retailers to effectively manage their assortment and attract more customers due to the versatility of the equipment.

Environmentally friendly

Customers can use reusable containers, which significantly reduces plastic waste and environmental impact.

Possibility of individual set of functions and accessories

Upon your request, we will install the necessary equipment to meet your business needs.

Dimensions:

  • Width - 750 mm;
  • Depth - 885 mm;
  • Height - 1940 mm.

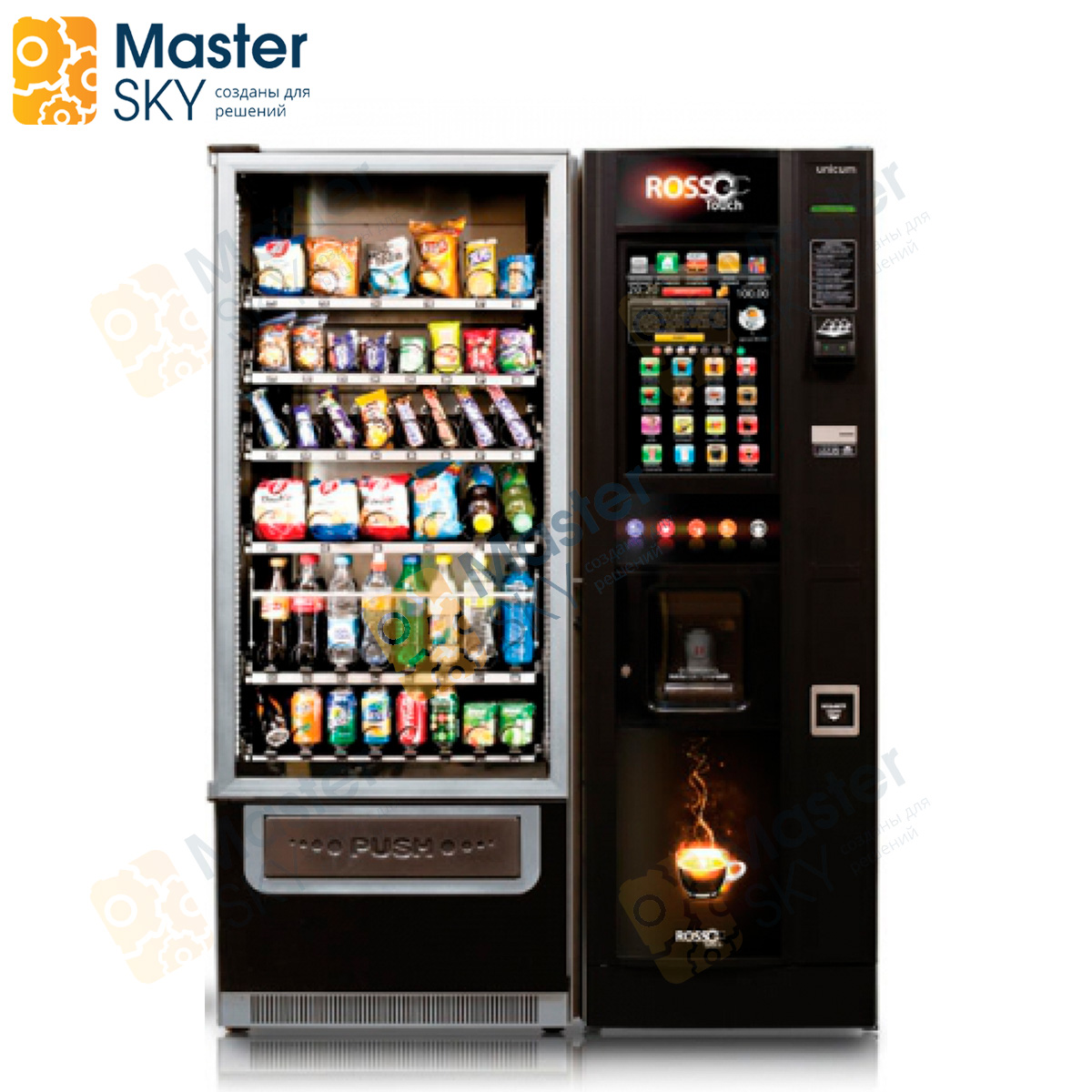

The ROSSOBAR TOUCH combined vending machine
In The Master Sky, you can buy the ROSSOBAR TOUCH. You will always be three times more effective than your competitors with an ability to showcase the videos that could be your most important competitive advantage. The ultramodern design, the possibility of detailed description of products and drinks on the monitor, interactive flash games and animation during the preparation of drinks.
The large 22-inch touch screen allows not only to inform the buyer about the necessary information on the purchased products or drinks, but also to implement the functionality of the payment kiosk in this machine - to accept payments for mobile communication, internet, satellite TV, utility services.

The ROSSOBAR TOUCH is three machines on one square meter of the occupied area. Taxation and rent payments - as for one machine, profit - as from the three machines. You will always be three times more efficient than your competitors with an ability to showcase the videos that could be your most important competitive advantage. The ultramodern design, the possibility of detailed description of products and beverages on the monitor, interactive flash games and animation during the preparation of drinks, the ability to demonstrate videos that could be your most important competitive advantages.

FEATURES:
  • - Large 22'' touch screen monitor
  • - Quick slider transition (flipping through pages) between the functions of the machine (coffee / snack / payment kiosk)
  • - Multilingual interface
  • - Fine adjustment of grinding
  • - A large boiler that provides a stable temperature for drinks
  • - The unique dispensing mechanism that allows the buyer to take the drink only after it has been fully prepared
  • - Comfortable maintenance of the machine due to the ergonomic arrangement of the components inside the machine.
  • - Spacious change tray
  • - Control panel and payment systems are separated from the main block.
  • - Flexible hot drinks planogram
  • - An efficient set of software tools for analytics and control of the machine operation through the online monitoring system.
  • - Anti-fishing system for theft prevention.
  • - Possibility of an automatic expiration date control.
  • - Re-programmable lock
  • - Infrared sensors to control dispensing of products.
  • - Two temperature zones that provide perfect storage conditions for all products
  • - LED lightning of the display window
  • - Large product dispense tray and wide distance between the shelves and the display glass.
  • - Possibility of a quick self-adjustment of cell height and width
  • - Standard coating - special anti-vandalous paint for maintaining excellent appearance of the device
  • - If you want to brand the machine on your own, you should talk to your manager in advance about applying the appropriate coating.



  • Adjustment and auditing via USB.
  • The cup block and dispensing mechanism are retractable for easy cleaning and servicing.
  • Top and bottom box with uniform LED lightning.
  • High contrast graphic display (128 x 64 px)
  • Controlled and adjustable boiler temperature
  • Programmable lock.
  • Compatible with the MDB, EXE, Parallel, EVA-DTS protocols.
  • CE and VDE certificate
  • 6 shelves (optionally up to 7)
  • Up to 8 width-adjustable cells on the shelf (up to 12 in the LONG configuration).
  • 5 to 16 products in a cell.
  • Durable steel case (steel thickness up to 2 mm)
Parameters
ROSSOBAR TOUCH grain
ROSSOBAR TOUCH LONG grain
Dimensions (h x w x d)
1830 x 1400 x 800 mm
1830 x 1700 x 800 mm
Weight
400 kg
430 kg
Power supply
220-230 V / 50 Hz
220-230 V / 50 Hz
Power consumption (max.)
2500 W
2500 W
Specification of the snack module


Quantity of shelves
up to 8
up to 8
Quantity of cells
up to 64
up to 96
Capacity of cans per shelf
48
72
Capacity of bottles per shelf
48
72
Capacity of snacks per shelf
depending on spiral type
depending on spiral type
Available spirals (mm.)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
Available separators
93 / 132 mm
93 / 132 mm
Available cell width
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
Shelf height spacing
20 mm
20 mm
Refrigerator
1/5 ЛС
1/5 ЛС
Temperature:


Bottom shelves (1-2)
(1-2) 0° - +4° C
(1-2) 0° - +4° C
Top shelves
+7° - +14° C
+7° - +14° C
Cooler
R 404a
R 404a
Specification of the coffee module


Espresso boiler capacity
0,6 л
0,6 л
Water connection
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
Water supply
autonomous / central
autonomous / central
Capacity of canisters
2 by 20 l
2 by 20 l
Cups
500
500
Diameter of cups
70 mm
70 mm
Mixers
500
500
Size of mixers
95 / 105 / 115 mm
95 / 105 / 115 mm
Containers for grain coffee
1
1
Containers for soluble ingredients
4
5
Container for sugar
1
1
Quantity of drinks
16
16
Mixers
4
4
Dosage of grain coffee
6 - 9,5 g
no
Canister capacity


Grain coffee
2 kg
2 kg
Soluble coffee
2,2 kg
2,2 kg
Milk
4,8 kg
4,8 kg
Chocolate
5,2 kg
5,2 kg
Tea
4,8 kg
4,8 kg
Sugar
4 kg
4 kg
The ROSSOBAR combined vending machine
In The Master Sky, you can buy the ROSSOBAR Combined vending machine. This combined vending machine with such capacity can fit into a square meter. You can connect one or two slave modules (with 8 or 12 cells on each shelf) to the ROSSO coffee machine, creating a vending complex that sells 16 items of hot drinks and up to 192 items of snacks and soft drinks.
This combined vending machine with such capacity can fit into a square meter. You can connect one or two slave modules (with 8 or 12 cells on each shelf) to the ROSSO coffee machine, creating a vending complex that sells 16 items of hot drinks and up to 192 items of snacks and soft drinks.

The ROSSO is a unique development of The Unicum company combining the most modern vending technologies, convenience of service, ergonomics, and attractive design. The ROSSOBAR has all of the advantages of the ROSSO and the FOODBOX vending machines, but it takes less space, its cost is less, and it is easier and faster to serve such system. Since both machines operate from the same payment system, the cost of such combination is much lower than the cost of two separate machines. The ROSSOBAR can also be supplied with The ROSSOBAR LONG with 12 cells on the shelf.

FEATURES:
  • Fine adjustment of grinding.
  • A large boiler that provides a stable temperature of beverages.
  • The unique dispensing mechanism, allowing the customer to take the drink only after it has been fully prepared.
  • Comfortable maintenance due to an ergonomic arrangement of components inside of the machine.
  • Spacious change tray
  • The control panel and payment systems are separated from the main block
  • Flexible hot drinks planogram (any button for any drink)
  • An efficient set of software tools for analytics and control of the machine operation through the online monitoring system.
  • Automatic expiration date monitoring capability
  • Re-programmable lock
  • Infrared sensors to control the dispensing of products.
  • Two temperature zones that provide ideal storage conditions for all products
  • LED illuminated display window
  • Large product dispense tray and wide distance between the shelves and the display glass.
  • Possibility of a quick independent modification of the height and width of the cell.
  • Standard coating - special anti-vandalous paint to maintain the excellent appearance of the device
  • If you want to brand the machine on your own, you should talk to your manager in advance about applying the appropriate coating.



  • Adjustment and auditing via USB.
  • The cup block and dispensing mechanism are retractable for easy cleaning and servicing.
  • Top and bottom box with uniform LED lightning.
  • High contrast graphic display (128 x 64 px)
  • Controlled and adjustable boiler temperature
  • Programmable lock.
  • Compatible with the MDB, EXE, Parallel, EVA-DTS protocols.
  • CE and VDE certificate
  • 6 shelves (optionally up to 7)
  • Up to 8 width-adjustable cells on the shelf (up to 12 in the LONG configuration).
  • 5 to 16 products in a cell.
  • Durable steel case (steel thickness up to 2 mm)
Parameters
ROSSOBAR grain
ROSSOBAR LONG grain
ROSSOBAR soluble
ROSSOBAR LONG soluble
Dimensions (h x w x d)
1830 x 1400 x 800 mm
1830 x 1700 x 800 mm
1830 x 1400 x 800 mm
1830 x 1700 x 800 mm
Габариты составных модулей (в x ш x г)




Master
1830 x 600 x 670 mm
1830 x 600 x 670 mm
1830 x 600 x 670 mm
1830 x 600 x 670 mm
Slave
1830 x 700 x 800 mm
1830 x 1045 x 800 mm
1830 x 700 x 800 mm
1830 x 1045 x 800 mm
Area occupied along the line
0,97 m2 (0,4 + 0,57 m2)
1,24 m2 (0,4 + 0,84 m2)
0,97 m2 (0,4 + 0,57 m2)
1,24 m2 (0,4 + 0,84 m2)
Weight
400 kg
430 kg
400 kg
430 kg
Power supply
220-230 V / 50 Hz
220-230 V / 50 Hz
220-230 V / 50 Hz
220-230 V / 50 Hz
Power consumption (max.)
2500 W
2500 W
2500 W
2500 W
Specification of the snack module




Quantity of shelves
up to 8
up to 8
up to 8
up to 8
Quantity of cells
up to 64
up to 96
up to 64
up to 96
Capacity of cans per shelf
48
72
48
72
Capacity of bottles per shelf
48
72
48
72
Capacity of snacks per shelf
depending on spiral type
depending on spiral type
depending on spiral type
depending on spiral type
Available spirals (mm.)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
Available separators
93 / 132 mm
93 / 132 mm
93 / 132 mm
93 / 132 mm
Available cell width
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
Shelf height spacing
20 mm
20 mm
20 mm
20 mm
Refrigerator
1/5 ЛС
1/5 ЛС
1/5 ЛС
1/5 ЛС
Temperature:




Bottom shelves (1-2)
(1-2) 0° - +4° C
(1-2) 0° - +4° C
(1-2) 0° - +4° C
(1-2) 0° - +4° C
Top shelves
+7° - +14° C
+7° - +14° C
+7° - +14° C
+7° - +14° C
Cooler
R 404a
R 404a
R 404a
R 404a
Specification of the coffee module




Espresso boiler capacity
0,6 l
no
0,6 l
no
Water connection
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
Water supply
autonomous / central
autonomous / central
autonomous / central
autonomous / central
Capacity of canisters
2 by 20 l
2 by 20 l
2 by 20 l
2 by 20 l
Cups
600
600
600
600
Diameter of cups
70 mm
70 mm
70 mm
70 mm
Mixers
600
600
600
600
Size of mixers
95 / 105 / 115 mm
95 / 105 / 115 mm
95 / 105 / 115 mm
95 / 105 / 115 mm
Containers for grain coffee
1
1
no
no
Containers for soluble ingredients
4
5
4
5
Container for sugar
1
1
1
1
Quantity of drinks
16
16
16
16
Mixers
4
4
4
4
Dosage of grain coffee
6 - 9,5 g
6 - 9,5 g
no
no
Canister capacity




Grain coffee
3 kg
3 kg
no
no
Soluble coffee
no
no
1,4 kg
1,4 kg
Milk
2,2 kg
2,2 kg
2,2 kg
2,2 kg
Chocolate
4,8 kg
4,8 kg
4,8 kg
4,8 kg
Tea
5,2 kg
5,2 kg
5,2 kg
5,2 kg
vanilla cappuccino
4,8 kg
4,8 kg
4,8 kg
4,8 kg
Sugar
4 kg
4 kg
4 kg
4 kg
The NOVABAR combined vending machine
In The Master Sky, you can buy the NOVABAR Combined vending machine. The vending machine allows you to: sell hot drinks from natural grain coffee, as well as tea, soup, vanilla cappuccino, cold cocktails; sell food and soft drinks from a connected slave module.
The NOVABAR allows you to: sell hot drinks from natural grain coffee, as well as tea, soup, vanilla cappuccino, cold cocktails; sell food and soft drinks from a connected slave module.

The NOVABAR - a unique development of the company, combining the most modern vending technology, comfortable service, ergonomics, attractive design. The NOVABAR has all the advantages of the NOVA and the FOODBOX vending machines, but it takes less space, its cost is less, and it is easier and faster to serve such system. Since both machines operate from the same payment system, the cost of such combination is much lower than the cost of two separate machines. The NOVABAR can also be supplied with the NOVABAR LONG with 12 cells on the shelf.

FEATURES:
  • An efficient set of software tools for analytics and control of the machine operation through the online monitoring system.
  • Professional coffee grinder with fine adjustment of grinding.
  • A large boiler that provides a stable temperature of beverages.
  • The unique dispensing mechanism, allowing the customer to take the drink only after it has been fully prepared (in order to avoid scalding with hot water).
  • Comfortable maintenance due to an ergonomic arrangement of components inside of the dispenser.
  • LED lightning of the top, middle and bottom boxes.
  • The control panel and payment systems are separated from the main block by a metal curtain.
  • The FoodBox Slave can be connected to the module.
  • Automatic expiration date monitoring capability
  • Re-programmable lock
  • Infrared sensors to control the dispensing of products.
  • Two temperature zones that provide ideal storage conditions for all products
  • LED illuminated display window
  • Large product dispense tray and wide distance between the shelves and the display glass
  • Possibility of a quick independent modification of the height and width of the cell.
  • Standard coating - special anti-vandalous paint to maintain the excellent appearance of the device
  • If you want to brand the machine on your own, you should talk to your manager in advance about applying the appropriate coating.
  • Adjustment and auditing via USB.
  • The cup block and dispensing mechanism are retractable for easy cleaning and servicing.
  • Top and bottom box with uniform LED lightning.
  • High contrast graphic display (128 x 64 px)
  • Controlled and adjustable boiler temperature
  • Control - PC + machine controller
  • Programmable lock.
  • Compatible with the MDB, EXE, Parallel, EVA-DTS protocols.
  • CE and VDE certificate
  • 6 shelves (optionally up to 8)
  • Up to 8 width-adjustable cells on the shelf (up to 12 in the LONG configuration).
  • 5 to 16 products in a cell.
  • Durable steel case (steel thickness up to 2 mm)
  • Standard coating – shagreen, special anti-vandalous paint to maintain the excellent appearance of the device
  • If you want to brand the machine on your own, you should talk to your manager in advance about applying the appropriate coating.
Parameters
NOVABAR grain
NOVABAR LONG grain
NOVABAR soluble
NOVABAR LONG soluble
Dimensions (h x w x d)
1830 x 1400 x 800 mm
1830 x 1700 x 800 mm
1830 x 1400 x 800 mm
1830 x 1700 x 800 mm
Weight
400 kg
430 kg
400 kg
430 kg
Power supply
220-230 V / 50 Hz
220-230 V / 50 Hz
220-230 V / 50 Hz
220-230 V / 50 Hz
Power consumption (max.)
2500 W
2500 W
2500 W
2500 W
Specification of the snack module




Quantity of shelves
up to 8
up to 8
up to 8
up to 8
Quantity of cells
up to 64
up to 96
up to 64
up to 96
Capacity of cans per shelf
48
72
48
72
Capacity of bottles per shelf
48
72
48
72
Capacity of snacks per shelf
depending on spiral type
depending on spiral type
depending on spiral type
depending on spiral type
Available spirals (mm.)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
26 (16 items) - 80 (5 items)
Available separators
93 / 132 mm
93 / 132 mm
93 / 132 mm
93 / 132 mm
Available cell width
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
75 mm / 112,5 mm / 150 mm
Shelf height spacing
20 mm
20 mm
20 mm
20 mm
Refrigerator
1/5 ЛС
1/5 ЛС
1/5 ЛС
1/5 ЛС
Temperature:




Bottom shelves (1-2)
(1-2) 0° - +4° C
(1-2) 0° - +4° C
(1-2) 0° - +4° C
(1-2) 0° - +4° C
Top shelves
+7° - +14° C
+7° - +14° C
+7° - +14° C
+7° - +14° C
Cooler
R 404a
R 404a
R 404a
R 404a
Specification of the coffee module




Espresso boiler capacity
0,6 l
no
0,6 l
no
Water connection
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
3/4’’ 0,5 - 8,5 bar
Water supply
autonomous / central
autonomous / central
autonomous / central
autonomous / central
Capacity of canisters
2 by 20 l
2 by 20 l
2 by 20 l
2 by 20 l
Cups
600
600
600
600
Diameter of cups
70 mm
70 mm
70 mm
70 mm
Mixers
600
600
600
600
Size of mixers
95 / 105 / 115 mm
95 / 105 / 115 mm
95 / 105 / 115 mm
95 / 105 / 115 mm
Containers for grain coffee
1
no
1
no
Containers for soluble ingredients
3
4
3
4
Container for sugar
1
1
1
1
Quantity of drinks
12
12
12
12
Mixers
2
3
2
3
Dosage of grain coffee
6 - 9,5 g
no
6 - 9,5 g
no
Canister capacity




Grain coffee
3 kg
no
3 kg
no
Soluble coffee
no
1,4 kg
no
1,4 kg
Milk
2,2 kg
2,2 kg
2,2 kg
2,2 kg
Chocolate
4,8 kg
4,8 kg
4,8 kg
4,8 kg
Tea
5,2 kg
5,2 kg
5,2 kg
5,2 kg
vanilla cappuccino
4,8 kg
4,8 kg
4,8 kg
4,8 kg
Sugar
4 kg
4 kg
4 kg
4 kg

Pages
